Description

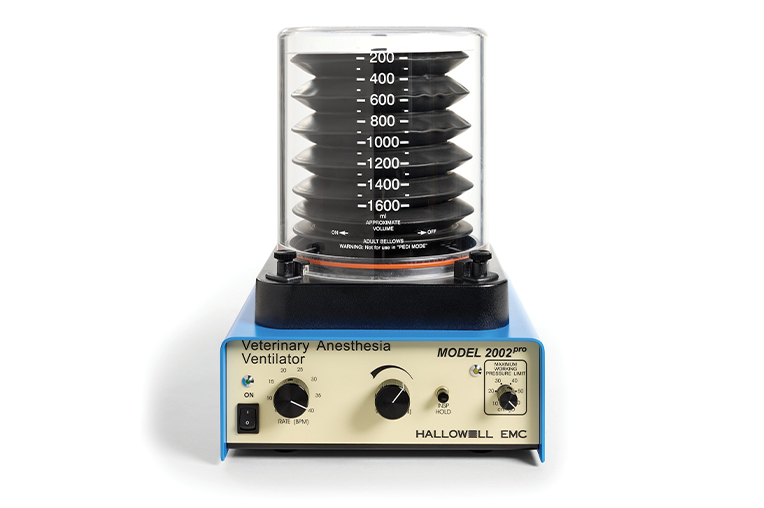

An electronically controlled, time-cycled, pressure-limited ventilator, the Model 2002PRO replaces the breathing bag to provide smooth, even delivery of anesthesia. Designed specifically for veterinary practice, the 2002PRO assures a constant volume for each delivered breath, regardless of patient compliance and airway resistance. Easy-to-use controls make operation simple and convenient.
- Replaces the breathing bag, freeing technician to assist in other procedures
- Single volume control knob allows for minute changes with small patients
- Promotes regular breathing for a smoother plane of anesthesia, more normocapnic PaCO2 levels and a more normal blood pH
- More economical use of supply gas
- Interchangeable bellows adapt to animals from 2.2 lb to 440 lb (1 kg to 200 kg)
- Dual-airway pressure alarms monitor the peak inspiratory pressure (PIP) of every breath and sound when the PIP either exceeds the preset maximum working pressure limit (MWPL), or fails to reach 6 cm H2O as in the case of a disconnect
- Adapts easily to all anesthesia circuits with out-of circuit vaporizers
- Accommodates respiratory rates from 6-40 breaths per minute at inspiratory flow rates from 0-100 LPM
- Built-in scavenging port
Operation Characteristics
Rate: 6-40 bpm
Tidal volume: 20-3000 cc
I:E ratio: 1:2 (preset)
Gas supply: Oxygen or clean, dry air
Pressure & flow: 35-65 psi @ 3 scfm
Controls
Rate: Linear, 6-40 bpm w/power switch
Volume: 9.5 turn metering valve
Maximum working pressure limit: Linearly adjustable, 10-60 cm H20
Indicators
Power on: Front panel-mounted green LED
Alarm, visual: Front panel-mounted yellow LED
Alarm, audio: Internal audio transducer
Alarm, audio: Int. Low supply gas pressure switch
Physical
Unit weight: 13 lbs (5.9 kg)
Controller footprint: 9″x10″ (228 x 254 mm)
Power requirements: 105-125 or 208-240 VAC, 50-60 Hz
Overall Height
PN 91806001 – 1,600 ml: 12″
PN 91806002 – 300 ml: 12.75″
PN 91806003 – 3,000 ml: 17.25″
Part Numbers for Models 2002PRO/3002PRO
91806001 300-1600 ml bellows and bellows housing
91806002 0-300 ml bellows, bellows housing, and adapter
91806003 1600-3000 ml bellows and bellows housing
91806005 300-1600 ml bellows and bellows housing plus 0-300 ml bellows, bellows housing, and adapter
