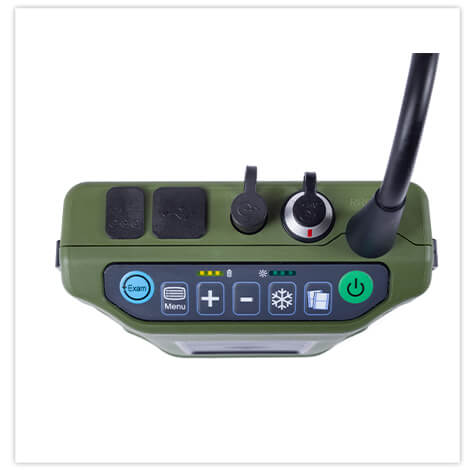

ReproScan XTC Portable Ultrasound

The ReproScan XTC Veterinary ultrasound is a durable, portable, convex probe cattle ultrasound unit with wireless capabilities.

It is designed to be paired with the ReproArm or for rapid pregnancy diagnosis and the alleviation of shoulder and arm strain.

Features of the Reproscan XTC:

  • 4.0 MHz 60mm convex rectal probe
  • Wireless or directly wired 2.0 Monitor
  • Splash proof
  • Freeze button
  • Lithium ion interchangeable battery
  • Charge from 120/240 VAC or 12 DC (Car Charger)
  • Battery indicator on display
  • Weighs 3.3lb (1.5kg) including battery
  • Shoulder strap, backpack or waist strap
  • 4 preset examination settings
  • Multiple grid settings for measuring & aging fetus
  • 2.4 GHz wireless sender
  • VGA 5 VDC video out port with LEMO connector
  • NTSC/PAL video out port with BNC connector
  • Interchangeable battery
  • 2 year warranty

Specifications:

  • 6 hour battery life
  • 4 hour battery charge time
  • Direct wired 4.0 MHz convex rectal probe
  • 2.0 to 5.0 MHz probe frequency range
  • 80 probe elements
  • 6 to 22 cm with rapid zoom +/- keys
  • 2.4 GHz 7 channel wireless sender
  • -10C to 40C (5 F to 104F) temperature range
  • 1.5 kgs / 3.3 lbs including battery
  • 18cm x 14.5cm x 4.5 cm / 7″ x 5 ½” x 1 ¾”

More Reproscan videos and information available HERE

Video

Unboxing your XTC
ReproScan XTC - Getting Started
XTC by ReproScan

Accessories

ReproScan Vista Goggles

ReproScan Wireless Ultrasound Monitor

ReproScan ReproArm

ReproScan NFI 5000

Downloads

Download ReproScan XTC Portable Ultrasound Brochure
