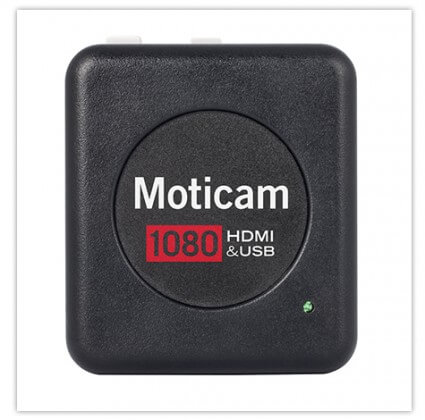

Moticam 1080 Microscope Camera

The Moticam 1080 microscope camera is designed for ease of use and the ability to output fast live images at 1920×1080 pixels in full HD.



Unlike other cameras, the Moticam 1080 does not require a computer. Just simply plug the camera through the HDMI port and display images with the use of the onboard software and a USB mouse through a HDMI monitor. By having an integrated SD card slot, not only does saving images not require a computer, but it allows flexibility to save portable data.



Description

FEATURES

  • Sensor size 1/2.8″
  • Capture resolution  8MP (3840×2160 pixels)
  • Image capture resolution (on SD-card) 8MP (3840×2160 pixels)
  • Video capture resolution (on SD-card) 1920x1080p (Full HD)
  • Data transfer  HDMI (1080p), USB 2.0
  • Slot SD Card (max 32Gb)
  • Support OS Windows XP SP3/Vista/7/8/10 and MAC OSX, Linux
  • Minimum computer requirements  2GHz dual core – RAM memory 2GB – Video memory min. 512 MB
  • Lens mount C-Mount
  • Focusable lens 12mm
  • Software  On-board software
  • Package includes CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, USB 2.0 cable, HDMI cable, Motic 4-dotcalibration slide, macro tube, Motic Images Plus 3.0 for PC/OSX/ Linux/ universal power supply.

Downloads

Moticam_1080_Catalog

Moticam_1080_Specs
